#include <PrettyPrinter.h>

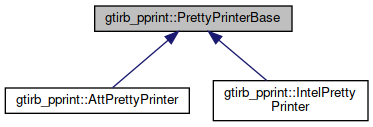

Inheritance diagram for gtirb_pprint::PrettyPrinterBase:

Public Member Functions
	PrettyPrinterBase (gtirb::Context &context, gtirb::IR &ir, const string_range &skip_funcs, DebugStyle dbg)

virtual	~PrettyPrinterBase ()

virtual std::ostream &	print (std::ostream &out)

Protected Member Functions
std::string	avoidRegNameConflicts (const std::string &x)

std::vector< std::string > *	getAmbiguousSymbol ()

std::optional< std::string >	getContainerFunctionName (const gtirb::Addr x) const

const std::optional< const gtirb::Section * >	getContainerSection (const gtirb::Addr addr) const

std::optional< std::string >	getForwardedSymbolName (const gtirb::Symbol *symbol, bool isAbsolute) const

std::string	getFunctionName (gtirb::Addr x) const

virtual int	getGtirbOpIndex (int index, int opCount) const =0

virtual std::string	getRegisterName (unsigned int reg) const

virtual const gtirb::SymAddrConst *	getSymbolicImmediate (const gtirb::SymbolicExpression *symex)

bool	isAmbiguousSymbol (const std::string &ea) const

bool	isInSkippedFunction (const gtirb::Addr x) const

bool	isInSkippedSection (const gtirb::Addr x) const

bool	isSectionSkipped (const std::string &name)

virtual void	printAddend (std::ostream &os, int64_t number, bool first=false)

virtual void	printAlignment (std::ostream &os, const gtirb::Addr addr)

virtual void	printBar (std::ostream &os, bool heavy=true)

virtual void	printBlock (std::ostream &os, const gtirb::Block &x)

virtual gtirb::Addr	printBlockOrWarning (std::ostream &os, const gtirb::Block &x, gtirb::Addr last)

virtual void	printComment (std::ostream &os, const gtirb::Addr ea)

virtual void	printDataObject (std::ostream &os, const gtirb::DataObject &dataObject)

virtual gtirb::Addr	printDataObjectOrWarning (std::ostream &os, const gtirb::DataObject &x, gtirb::Addr last)

virtual void	printEA (std::ostream &os, gtirb::Addr ea)

virtual void	printFunctionHeader (std::ostream &os, gtirb::Addr ea)

virtual void	printHeader (std::ostream &os)=0

virtual void	printInstruction (std::ostream &os, const cs_insn &inst)

virtual void	printNonZeroDataObject (std::ostream &os, const gtirb::DataObject &dataObject)

virtual void	printOperand (std::ostream &os, const gtirb::SymbolicExpression *symbolic, const cs_insn &inst, uint64_t index)

virtual void	printOperandList (std::ostream &os, const gtirb::Addr ea, const cs_insn &inst)

virtual void	printOpImmediate (std::ostream &os, const gtirb::SymbolicExpression *symbolic, const cs_insn &inst, uint64_t index)=0

virtual void	printOpIndirect (std::ostream &os, const gtirb::SymbolicExpression *symbolic, const cs_insn &inst, uint64_t index)=0

virtual void	printOpRegdirect (std::ostream &os, const cs_insn &inst, const cs_x86_op &op)=0

virtual void	printOverlapWarning (std::ostream &os, gtirb::Addr ea)

virtual void	printSectionHeader (std::ostream &os, const gtirb::Addr addr)

virtual void	printString (std::ostream &os, const gtirb::DataObject &x)

virtual void	printSymbolDefinitionsAtAddress (std::ostream &os, gtirb::Addr ea)

virtual void	printSymbolicData (std::ostream &os, const gtirb::SymbolicExpression *symbolic)

virtual void	printSymbolicExpression (std::ostream &os, const gtirb::SymAddrConst *sexpr, bool inData=false)

virtual void	printSymbolicExpression (std::ostream &os, const gtirb::SymAddrAddr *sexpr, bool inData=false)

virtual void	printSymbolReference (std::ostream &os, const gtirb::Symbol *symbol, bool inData) const

virtual void	printZeroDataObject (std::ostream &os, const gtirb::DataObject &dataObject)

bool	shouldExcludeDataElement (const gtirb::Section &section, const gtirb::DataObject &dataObject) const

bool	skipEA (const gtirb::Addr x) const

Static Protected Member Functions
static std::string	AdaptRegister (const std::string &x)

static std::string	AvoidRegNameConflicts (const std::string &x)

static std::string	GetSizeName (uint64_t x)

static std::string	GetSizeName (const std::string &x)

static std::string	GetSizeSuffix (uint64_t x)

static std::string	GetSizeSuffix (const std::string &x)

static std::string	GetSymbolToPrint (gtirb::Addr x)

Protected Attributes
const std::unordered_set< std::string >	AsmArraySection

std::unordered_set< std::string >	AsmSkipFunction
	Functions to avoid printing. More...

std::unordered_set< std::string >	AsmSkipSection
	Sections to avoid printing. More...

gtirb::Context &	context

csh	csHandle

bool	debug

gtirb::IR &	ir

const std::string	StrNOP {"nop"}

const std::string	StrSection {".section"}

const std::string	StrSectionBSS {".bss"}

const std::string	StrSectionGlobal {".globl"}

const std::string	StrSectionText {".text"}

const std::string	StrSectionType {".type"}

const std::string	StrTab {" "}

const std::string	StrZeroByte {".byte 0x00"}
	Constants to reduce (eliminate) magical strings inside the printer. More...

Detailed Description

The pretty-printer interface. There is only one exposed function, print().

Constructor & Destructor Documentation

◆ PrettyPrinterBase()

gtirb_pprint::PrettyPrinterBase::PrettyPrinterBase	(	gtirb::Context &	context,
		gtirb::IR &	ir,
		const string_range &	skip_funcs,
		DebugStyle	dbg
	)

◆ ~PrettyPrinterBase()

gtirb_pprint::PrettyPrinterBase::~PrettyPrinterBase ( )

virtual

Member Function Documentation

◆ AdaptRegister()

static std::string gtirb_pprint::PrettyPrinterBase::AdaptRegister ( const std::string & x )

staticprotected

◆ avoidRegNameConflicts()

std::string gtirb_pprint::PrettyPrinterBase::avoidRegNameConflicts ( const std::string & x )

protected

◆ AvoidRegNameConflicts()

std::string gtirb_pprint::PrettyPrinterBase::AvoidRegNameConflicts ( const std::string & x )

staticprotected

◆ getAmbiguousSymbol()

std::vector<std::string>* gtirb_pprint::PrettyPrinterBase::getAmbiguousSymbol ( )

protected

◆ getContainerFunctionName()

std::optional< std::string > gtirb_pprint::PrettyPrinterBase::getContainerFunctionName ( const gtirb::Addr x ) const

protected

Get the name of the function containing an effective address. This implementation assumes that functions are tightly packed within a module; that is, it assumes that all addresses from the start of one function to the next is part of the first. It also assumes that the body of the last function in a module extends to the end of the module.

The locations of the functions are found in the "functionEntry" AuxData table.

Parameters

x	the address to check

Returns: the name of the containing function if one is found.

◆ getContainerSection()

const std::optional< const gtirb::Section * > gtirb_pprint::PrettyPrinterBase::getContainerSection ( const gtirb::Addr addr ) const

protected

◆ getForwardedSymbolName()

std::optional< std::string > gtirb_pprint::PrettyPrinterBase::getForwardedSymbolName	(	const gtirb::Symbol *	symbol,
		bool	isAbsolute
	)		const

protected

◆ getFunctionName()

std::string gtirb_pprint::PrettyPrinterBase::getFunctionName ( gtirb::Addr x ) const

protected

◆ getGtirbOpIndex()

virtual int gtirb_pprint::PrettyPrinterBase::getGtirbOpIndex	(	int	index,
		int	opCount
	)		const

protectedpure virtual

Get the index of an operand in the GTIRB, given the index of the operand in the Capstone instruction.

NOTE: The GTIRB operands are indexed as if they were in an array: auto operands[] = {<unused>, src1, src2, ..., dst}

Parameters

index	the Capstone index of the operand
opCount	the total number of operands in the instruction

Implemented in gtirb_pprint::AttPrettyPrinter, and gtirb_pprint::IntelPrettyPrinter.

◆ getRegisterName()

std::string gtirb_pprint::PrettyPrinterBase::getRegisterName ( unsigned int reg ) const

protectedvirtual

Reimplemented in gtirb_pprint::AttPrettyPrinter.

◆ GetSizeName() [1/2]

std::string gtirb_pprint::PrettyPrinterBase::GetSizeName ( uint64_t x )

staticprotected

◆ GetSizeName() [2/2]

std::string gtirb_pprint::PrettyPrinterBase::GetSizeName ( const std::string & x )

staticprotected

◆ GetSizeSuffix() [1/2]

std::string gtirb_pprint::PrettyPrinterBase::GetSizeSuffix ( uint64_t x )

staticprotected

◆ GetSizeSuffix() [2/2]

std::string gtirb_pprint::PrettyPrinterBase::GetSizeSuffix ( const std::string & x )

staticprotected

◆ getSymbolicImmediate()

const gtirb::SymAddrConst * gtirb_pprint::PrettyPrinterBase::getSymbolicImmediate ( const gtirb::SymbolicExpression * symex )

protectedvirtual

Return the SymAddrConst expression if it refers to a printed symbol.

Parameters

symex the SymbolicExpression to check

◆ GetSymbolToPrint()

std::string gtirb_pprint::PrettyPrinterBase::GetSymbolToPrint ( gtirb::Addr x )

staticprotected

◆ isAmbiguousSymbol()

bool gtirb_pprint::PrettyPrinterBase::isAmbiguousSymbol ( const std::string & ea ) const

protected

◆ isInSkippedFunction()

bool gtirb_pprint::PrettyPrinterBase::isInSkippedFunction ( const gtirb::Addr x ) const

protected

◆ isInSkippedSection()

bool gtirb_pprint::PrettyPrinterBase::isInSkippedSection ( const gtirb::Addr x ) const

protected

◆ isSectionSkipped()

bool gtirb_pprint::PrettyPrinterBase::isSectionSkipped ( const std::string & name )

protected

◆ print()

std::ostream & gtirb_pprint::PrettyPrinterBase::print ( std::ostream & out )

virtual

◆ printAddend()

void gtirb_pprint::PrettyPrinterBase::printAddend	(	std::ostream &	os,
		int64_t	number,
		bool	first = `false`
	)

protectedvirtual

◆ printAlignment()

void gtirb_pprint::PrettyPrinterBase::printAlignment	(	std::ostream &	os,
		const gtirb::Addr	addr
	)

protectedvirtual

◆ printBar()

void gtirb_pprint::PrettyPrinterBase::printBar	(	std::ostream &	os,
		bool	heavy = `true`
	)

protectedvirtual

◆ printBlock()

void gtirb_pprint::PrettyPrinterBase::printBlock	(	std::ostream &	os,
		const gtirb::Block &	x
	)

protectedvirtual

◆ printBlockOrWarning()

gtirb::Addr gtirb_pprint::PrettyPrinterBase::printBlockOrWarning	(	std::ostream &	os,
		const gtirb::Block &	x,
		gtirb::Addr	last
	)

protectedvirtual

Print the block as long as it does not overlap with the address last. If it overlaps, print a warning instead. Return the ending address of the block if this was printed. Otherwise return last.

◆ printComment()

void gtirb_pprint::PrettyPrinterBase::printComment	(	std::ostream &	os,
		const gtirb::Addr	ea
	)

protectedvirtual

◆ printDataObject()

void gtirb_pprint::PrettyPrinterBase::printDataObject	(	std::ostream &	os,
		const gtirb::DataObject &	dataObject
	)

protectedvirtual

◆ printDataObjectOrWarning()

gtirb::Addr gtirb_pprint::PrettyPrinterBase::printDataObjectOrWarning	(	std::ostream &	os,
		const gtirb::DataObject &	x,
		gtirb::Addr	last
	)

protectedvirtual

Print the dataObject as long as it does not overlap with the address last. If it overlaps, print a warning instead. Return the ending address of the block if this was printed. Otherwise return last.

◆ printEA()

void gtirb_pprint::PrettyPrinterBase::printEA	(	std::ostream &	os,
		gtirb::Addr	ea
	)

protectedvirtual

◆ printFunctionHeader()

void gtirb_pprint::PrettyPrinterBase::printFunctionHeader	(	std::ostream &	os,
		gtirb::Addr	ea
	)

protectedvirtual

◆ printHeader()

virtual void gtirb_pprint::PrettyPrinterBase::printHeader ( std::ostream & os )

protectedpure virtual

Implemented in gtirb_pprint::AttPrettyPrinter, and gtirb_pprint::IntelPrettyPrinter.

◆ printInstruction()

void gtirb_pprint::PrettyPrinterBase::printInstruction	(	std::ostream &	os,
		const cs_insn &	inst
	)

protectedvirtual

Print a single instruction to the stream. This implementation prints the mnemonic provided by Capstone, then calls printOperandList(). Thus, it is probably sufficient for most subclasses to configure Capstone to produce the correct mnemonics (e.g., to include an operand size suffix) and not modify this method.

Parameters

os	the output stream to print to
inst	the instruction to print

◆ printNonZeroDataObject()

void gtirb_pprint::PrettyPrinterBase::printNonZeroDataObject	(	std::ostream &	os,
		const gtirb::DataObject &	dataObject
	)

protectedvirtual

◆ printOperand()

void gtirb_pprint::PrettyPrinterBase::printOperand	(	std::ostream &	os,
		const gtirb::SymbolicExpression *	symbolic,
		const cs_insn &	inst,
		uint64_t	index
	)

protectedvirtual

◆ printOperandList()

void gtirb_pprint::PrettyPrinterBase::printOperandList	(	std::ostream &	os,
		const gtirb::Addr	ea,
		const cs_insn &	inst
	)

protectedvirtual

◆ printOpImmediate()

virtual void gtirb_pprint::PrettyPrinterBase::printOpImmediate	(	std::ostream &	os,
		const gtirb::SymbolicExpression *	symbolic,
		const cs_insn &	inst,
		uint64_t	index
	)

protectedpure virtual

Implemented in gtirb_pprint::AttPrettyPrinter, and gtirb_pprint::IntelPrettyPrinter.

◆ printOpIndirect()

virtual void gtirb_pprint::PrettyPrinterBase::printOpIndirect	(	std::ostream &	os,
		const gtirb::SymbolicExpression *	symbolic,
		const cs_insn &	inst,
		uint64_t	index
	)

protectedpure virtual

Implemented in gtirb_pprint::AttPrettyPrinter, and gtirb_pprint::IntelPrettyPrinter.

◆ printOpRegdirect()

virtual void gtirb_pprint::PrettyPrinterBase::printOpRegdirect	(	std::ostream &	os,
		const cs_insn &	inst,
		const cs_x86_op &	op
	)

protectedpure virtual

Implemented in gtirb_pprint::AttPrettyPrinter, and gtirb_pprint::IntelPrettyPrinter.

◆ printOverlapWarning()

void gtirb_pprint::PrettyPrinterBase::printOverlapWarning	(	std::ostream &	os,
		gtirb::Addr	ea
	)

protectedvirtual

◆ printSectionHeader()

void gtirb_pprint::PrettyPrinterBase::printSectionHeader	(	std::ostream &	os,
		const gtirb::Addr	addr
	)

protectedvirtual

◆ printString()

void gtirb_pprint::PrettyPrinterBase::printString	(	std::ostream &	os,
		const gtirb::DataObject &	x
	)

protectedvirtual

◆ printSymbolDefinitionsAtAddress()

void gtirb_pprint::PrettyPrinterBase::printSymbolDefinitionsAtAddress	(	std::ostream &	os,
		gtirb::Addr	ea
	)

protectedvirtual

◆ printSymbolicData()

void gtirb_pprint::PrettyPrinterBase::printSymbolicData	(	std::ostream &	os,
		const gtirb::SymbolicExpression *	symbolic
	)

protectedvirtual

◆ printSymbolicExpression() [1/2]

void gtirb_pprint::PrettyPrinterBase::printSymbolicExpression	(	std::ostream &	os,
		const gtirb::SymAddrConst *	sexpr,
		bool	inData = `false`
	)

protectedvirtual

◆ printSymbolicExpression() [2/2]

void gtirb_pprint::PrettyPrinterBase::printSymbolicExpression	(	std::ostream &	os,
		const gtirb::SymAddrAddr *	sexpr,
		bool	inData = `false`
	)

protectedvirtual

◆ printSymbolReference()

void gtirb_pprint::PrettyPrinterBase::printSymbolReference	(	std::ostream &	os,
		const gtirb::Symbol *	symbol,
		bool	inData
	)		const

protectedvirtual

◆ printZeroDataObject()

void gtirb_pprint::PrettyPrinterBase::printZeroDataObject	(	std::ostream &	os,
		const gtirb::DataObject &	dataObject
	)

protectedvirtual

◆ shouldExcludeDataElement()

bool gtirb_pprint::PrettyPrinterBase::shouldExcludeDataElement	(	const gtirb::Section &	section,
		const gtirb::DataObject &	dataObject
	)		const

protected

◆ skipEA()

bool gtirb_pprint::PrettyPrinterBase::skipEA ( const gtirb::Addr x ) const

protected

Member Data Documentation

◆ AsmArraySection

const std::unordered_set<std::string> gtirb_pprint::PrettyPrinterBase::AsmArraySection

protected

Initial value:

{".init_array",

".fini_array"}

◆ AsmSkipFunction

std::unordered_set<std::string> gtirb_pprint::PrettyPrinterBase::AsmSkipFunction

protected

Functions to avoid printing.

◆ AsmSkipSection

std::unordered_set<std::string> gtirb_pprint::PrettyPrinterBase::AsmSkipSection

protected

Initial value:

{

".comment", ".plt", ".init", ".fini", ".got", ".plt.got", ".got.plt"}

Sections to avoid printing.

◆ context

gtirb::Context& gtirb_pprint::PrettyPrinterBase::context

protected

◆ csHandle

csh gtirb_pprint::PrettyPrinterBase::csHandle

protected

◆ debug

bool gtirb_pprint::PrettyPrinterBase::debug

protected

◆ ir

gtirb::IR& gtirb_pprint::PrettyPrinterBase::ir

protected

◆ StrNOP

const std::string gtirb_pprint::PrettyPrinterBase::StrNOP {"nop"}

protected

◆ StrSection

const std::string gtirb_pprint::PrettyPrinterBase::StrSection {".section"}

protected

◆ StrSectionBSS

const std::string gtirb_pprint::PrettyPrinterBase::StrSectionBSS {".bss"}

protected

◆ StrSectionGlobal

const std::string gtirb_pprint::PrettyPrinterBase::StrSectionGlobal {".globl"}

protected

◆ StrSectionText

const std::string gtirb_pprint::PrettyPrinterBase::StrSectionText {".text"}

protected

◆ StrSectionType

const std::string gtirb_pprint::PrettyPrinterBase::StrSectionType {".type"}

protected

◆ StrTab

const std::string gtirb_pprint::PrettyPrinterBase::StrTab {" "}

protected

◆ StrZeroByte

const std::string gtirb_pprint::PrettyPrinterBase::StrZeroByte {".byte 0x00"}

protected

Constants to reduce (eliminate) magical strings inside the printer.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ PrettyPrinterBase()

◆ ~PrettyPrinterBase()

Member Function Documentation

◆ AdaptRegister()

◆ avoidRegNameConflicts()

◆ AvoidRegNameConflicts()

◆ getAmbiguousSymbol()

◆ getContainerFunctionName()

◆ getContainerSection()

◆ getForwardedSymbolName()

◆ getFunctionName()

◆ getGtirbOpIndex()

◆ getRegisterName()

◆ GetSizeName() [1/2]

◆ GetSizeName() [2/2]

◆ GetSizeSuffix() [1/2]

◆ GetSizeSuffix() [2/2]

◆ getSymbolicImmediate()

◆ GetSymbolToPrint()

◆ isAmbiguousSymbol()

◆ isInSkippedFunction()

◆ isInSkippedSection()

◆ isSectionSkipped()

◆ print()

◆ printAddend()

◆ printAlignment()

◆ printBar()

◆ printBlock()

◆ printBlockOrWarning()

◆ printComment()

◆ printDataObject()

◆ printDataObjectOrWarning()

◆ printEA()

◆ printFunctionHeader()

◆ printHeader()

◆ printInstruction()

◆ printNonZeroDataObject()

◆ printOperand()

◆ printOperandList()

◆ printOpImmediate()

◆ printOpIndirect()

◆ printOpRegdirect()

◆ printOverlapWarning()

◆ printSectionHeader()

◆ printString()

◆ printSymbolDefinitionsAtAddress()

◆ printSymbolicData()

◆ printSymbolicExpression() [1/2]

◆ printSymbolicExpression() [2/2]

◆ printSymbolReference()

◆ printZeroDataObject()

◆ shouldExcludeDataElement()

◆ skipEA()

Member Data Documentation

◆ AsmArraySection

◆ AsmSkipFunction

◆ AsmSkipSection

◆ context

◆ csHandle

◆ debug

◆ ir

◆ StrNOP

◆ StrSection

◆ StrSectionBSS

◆ StrSectionGlobal

◆ StrSectionText

◆ StrSectionType

◆ StrTab

◆ StrZeroByte
